WINDOW Statement

Example 1: Creating a Single Window

This DATA step creates a window with a single group of fields:

data _null_;
   window start
          #9  @26 'WELCOME TO THE SAS SYSTEM'
                  color=black
          #12  @19 'THIS PROGRAM CREATES'
          #12  @40 'TWO SAS DATA SETS'
          #14 @26 'AND USES THREE PROCEDURES'
          #18 @27 'Press ENTER to continue';
    display start;
    stop;
run;

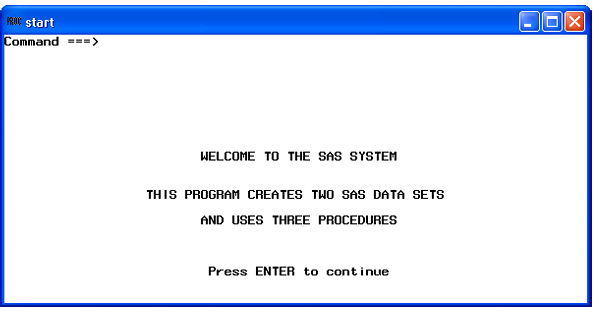

The START window fills the entire monitor. The first line of text is black. The other three lines are the default for your operating environment. The text begins in the column that you specified in your program. The START window does not require you to enter any values. However, to exit the window take one of these actions:

• Press Enter to cause DATA step execution to proceed to the STOP statement.
• Issue the END command.

If you omit the STOP statement from this program, the DATA step executes endlessly until you execute END from the window, either with a function key or from the command line. (Because this DATA step does not read any observations, SAS cannot detect an end-of-file to end DATA step execution.)

Example 2: Displaying Two Windows Simultaneously

These statements assign news articles to reporters. The list of article topics is stored as variable art in SAS data set category.article. This application enables you to assign each topic to a writer and to view the accumulating assignments. The program creates a new SAS data set named Assignment.

libname category 'SAS-library';
data Assignment;
   set category.article end=final;
   drop a b j s o;
   window Assignment irow=1 rows=12 color=white
          #3 @10 'Article:' +1 art protect=yes
          'Name:' +1 name $14.;
   window Showtotal irow=20 rows=12 color=white
          group=subtotal
          #1 @10 'Adams has' +1 a
          #2 @10 'Brown has' +1 b
          #3 @10 'Johnson has' +1 j
          #4 @10 'Smith has' +1 s
          #5 @10 'Other has' +1 o
          group=lastmessage
          #8 @10
          'ALL ARTICLES ASSIGNED.
          Press ENTER to stop processing.';
   display Assignment blank;
   if name='Adams' then a+1;
   else if name='Brown' then b+1;
   else if name='Johnson' then j+1;
   else if name='Smith' then s+1;
   else o+1;
   display Showtotal.subtotal blank noinput;
   if final then display Showtotal.lastmessage;
run;

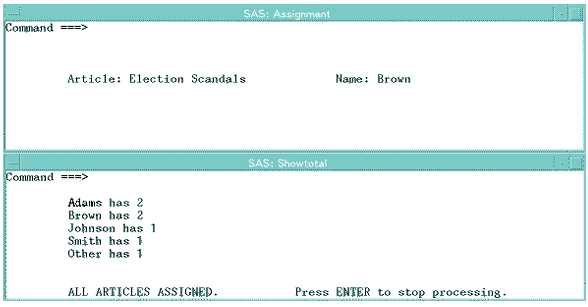

When you execute the DATA step, these windows appear.

In the Assignment window (located at the top of the monitor), you see the name of the article and a field into which you enter a reporter's name. After you enter a name and press Enter, SAS displays the Showtotal window (located at the bottom of the monitor) that shows the number of articles that are assigned to each reporter (including the assignment that you just made). As you continue to make assignments, the values in the Showtotal window are updated. During the last iteration of the DATA step, SAS displays the message that all articles are assigned, and instructs you to press Enter to stop processing.

Example 3: Persisting and Nonpersisting Fields

This example demonstrates the PERSIST= option. You move from one window to the other by positioning the cursor in the current window and pressing Enter.

data _null_;
   array row{3} r1-r3;
   array col{3} c1-c3;
   input row{*} col{*};
   window One
          rows=20 columns=36
          #1 @14 'PERSIST=YES' color=black
          #(row{i}) @(col{i}) 'Hello'
          color=black persist=yes;
   window Two
          icolumn=43 rows=20 columns=36
          #1 @14 'PERSIST=NO' color=black
          #(row{i}) @(col{i}) 'Hello'
          color=black persist=no;
   do i=1 to 3;
      display One;
      display Two;
   end;
   datalines;
5 10 15 5 10 15
;

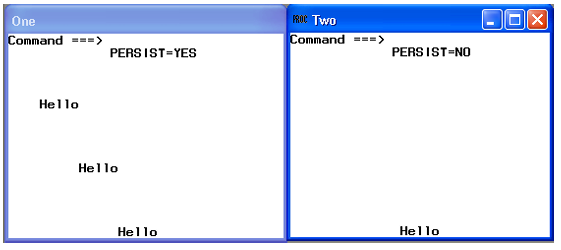

These windows show the results of this DATA step after its third iteration.

Note that window One shows Hello in all three positions in which it was displayed. Window Two shows only the third and final position in which Hello was displayed.

Example 4: Sending a Message

This example uses the _CMD_ and _MSG_ automatic variables to send a message when you execute an erroneous windowing command in a window that is defined with the WINDOW statement:

if _cmd_ ne ' ' then
   _msg_='CAUTION: UNRECOGNIZED COMMAND' || _cmd_;

When you enter a command that contains an error, SAS sets the value of _CMD_ to the text of the erroneous command. Because the value of _CMD_ is no longer blank, the IF statement is true. The THEN statement assigns to _MSG_ the value that is created by concatenating CAUTION: UNRECOGNIZED COMMAND and the value of _CMD_ (up to a total of 80 bytes). The next time a DISPLAY statement displays that window, the message line of the window displays this message:

CAUTION: UNRECOGNIZED COMMAND command

Command is the erroneous windowing command.

Example 5: Creating a SAS Data Set

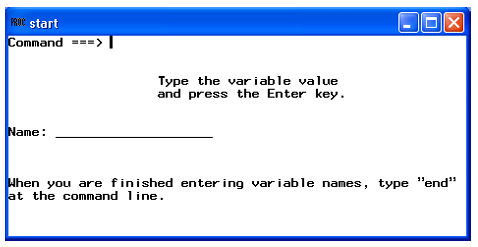

These statements create a SAS data set by using input from the WINDOW statement.

data new;
   length name $20;
   window start
      #3  @20 'Type the variable name'
      #4  @20 'and press the Enter key.'
      #7 'Name:' +1 name attr=underline
      #11 'When you are finished entering variable names, type "end"'
      #12 'at the command line.';
   display start;
run;
proc print;
run;
